Separation

Ballistor

Ballistic separator

Electric
Stationary
Mechanical drive

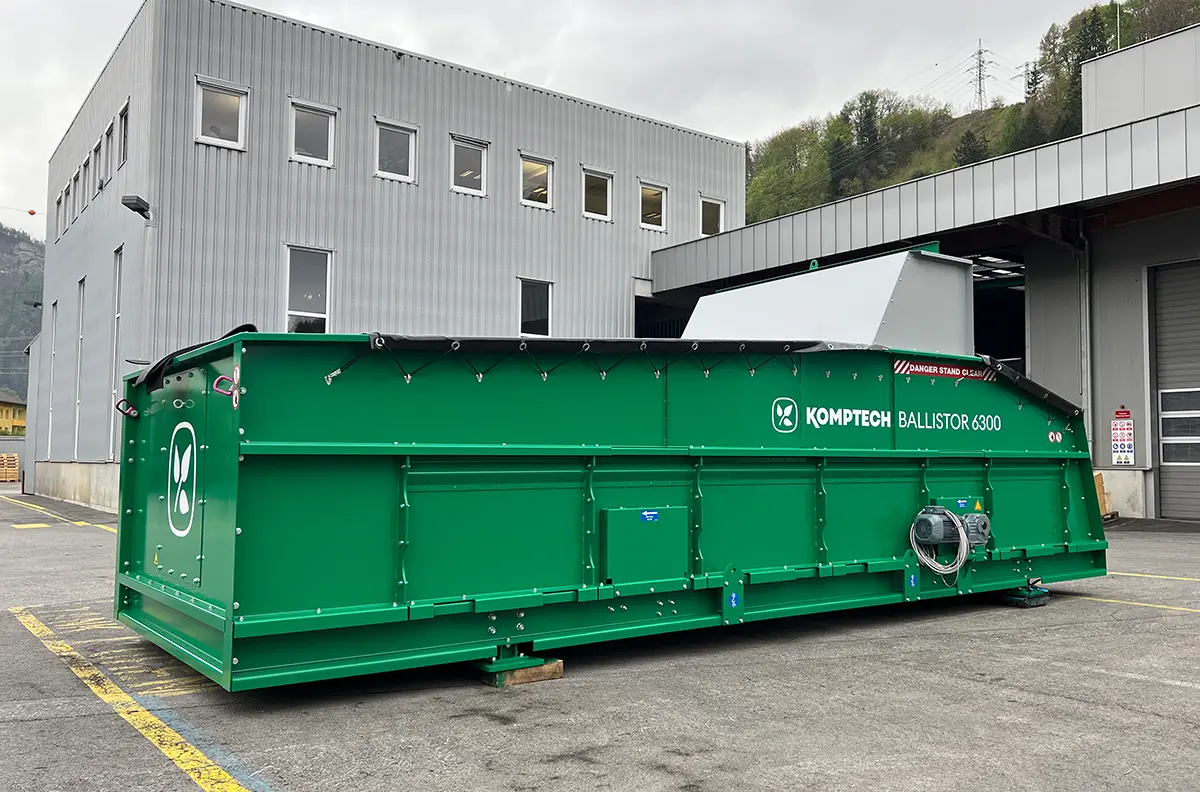

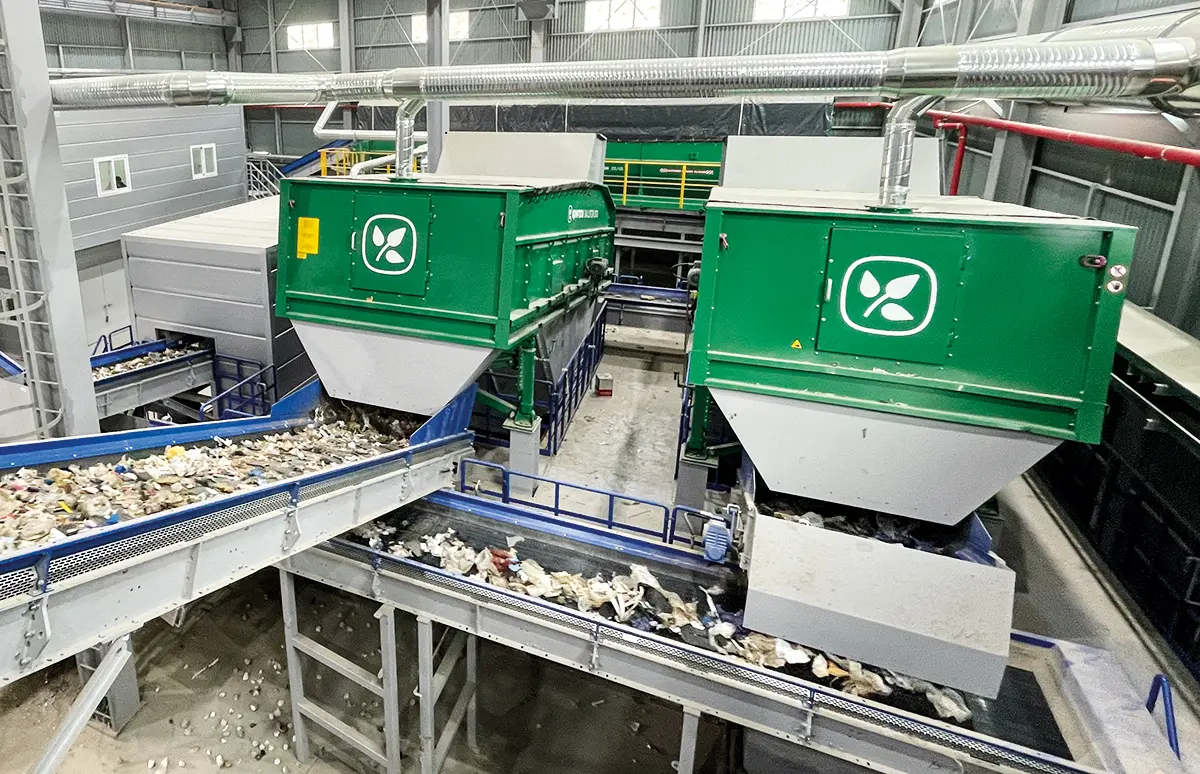

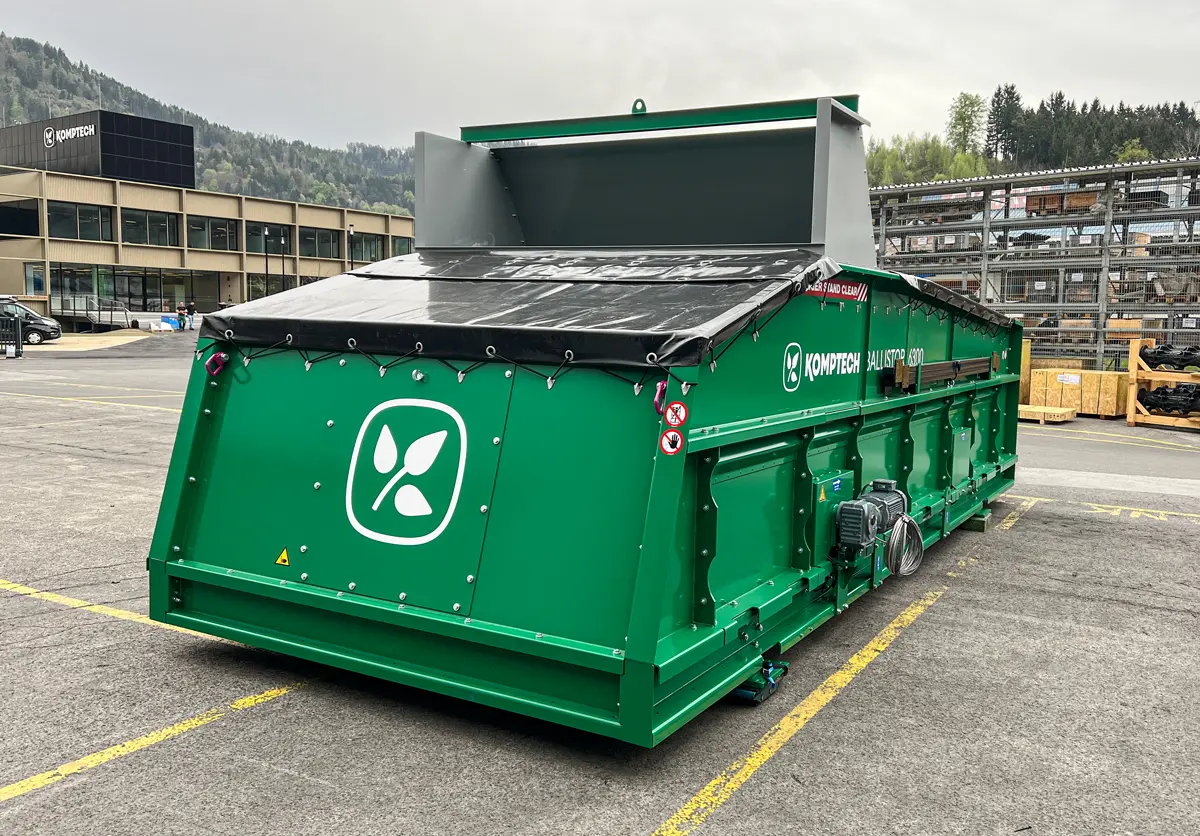

The Ballistor separates out usable fractions from waste and potential recyclables. By combining ballistic separation with screening, in just one pass-through the material stream is separated to the criteria 3/2-dimensional, rolling-cubic-rigid/ flat-soft-narrow, and particle size. This means that high-caloric fractions can be separated out of commercial or household waste and further processed into RDF in one operation.

The Ballistor’s long-life components, readily replaceable wear elements, and excellent maintenance access keep operating costs low. With four sizes and many options, the Ballistor separator can be configured to suit the application.

  • 5,7-
    9,7

    Weight (t)

  • 60-
    160,0

    Throughput (m³/h)

  • 5,5-
    11,0

    Engine power (kW)

Suitable for

  • 4300
  • 6300
  • 8300
  • 10300
Engine

    Anschlussleistung

  • 5,5
  • 5,5
  • 11
  • 11
Weight*

    Weight (tonnes)

  • 5,75
  • 7,0
  • 8,5
  • 9,75
Throughput

    Throughput capacity (m³/h)

  • up to 60
  • up to 100
  • up to 130
  • up to 160
Screen unit

    Siebfläche (m²)

  • 9,6
  • 14,4
  • 19,2
  • 23,9

    Number of screen elements

  • 4
  • 6
  • 8
  • 10

    Length of screen elements (mm)

  • 5600
  • 5600
  • 5600
  • 5600
Dimensions

    Length (mm)

  • 7475
  • 7475
  • 7475
  • 7475

    Width (mm)

  • 2400
  • 3237
  • 4100
  • 4960

    Breite Tansportposition

  • 2150
  • 3000
  • 3940
  • 4800

*depending on equipment
